Tapper

Part Number	5dB

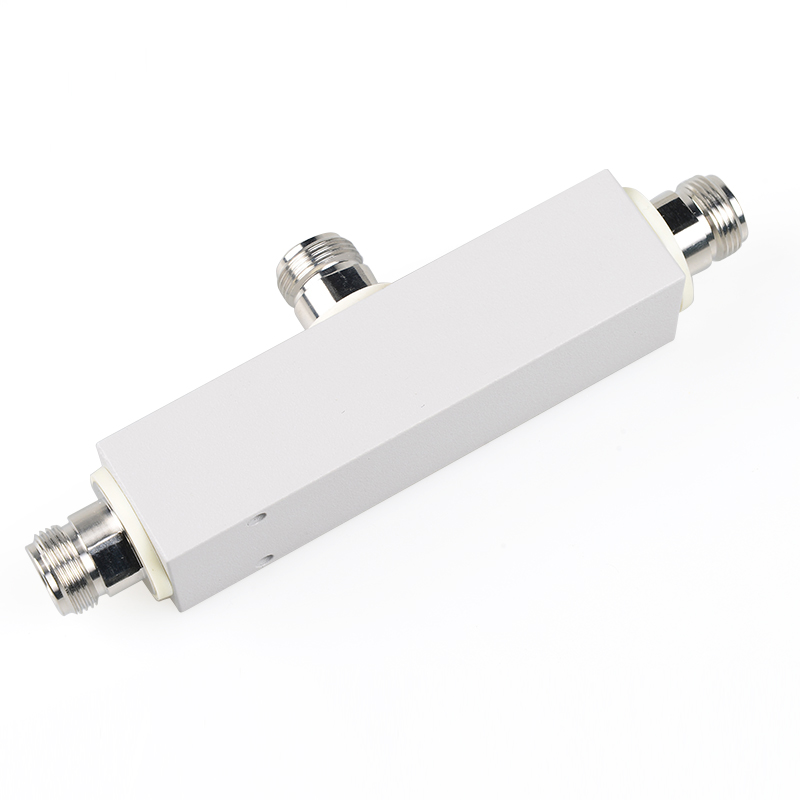

Part Number	CTC-5-360-NF
Frequency	340-6000 MHz
3rd Order IMD 2×43dBm	-163 dBc
Coupling Tolerance 350-380MHz 380-520MHz 698-960MHz 1695-2700MHz 3500-4500MHz 4900-6000MHz	5+1.3/-0dB 5+1.1/+0.2dB 5+0.9/-0.2dB 5±0.6dB 5+1.7/-0.2dB 5+0.8/-0.3dB
Insertion Loss	2.1 dB
VSWR	1.25@698-960&1695-2700MHz 1.35@350-698MHz & 3500-4500MHz & 4900-6000MHz
Average Power,max	300 W
