| Quantity: | |
|---|---|
| No. | Product name | Frequency, MHz | Polarization | Gain, dBi | HBW-3dB | VBW-3dB | PIM 3rd,2*20W | Configration |

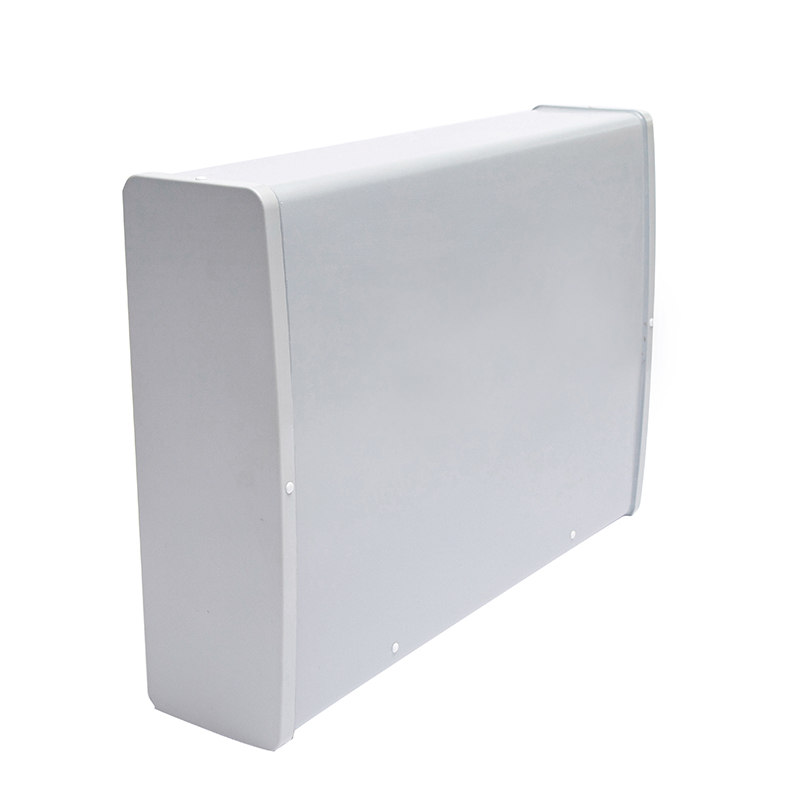

| 1 | 617-4200MHz 2x2MIMO 8dBi 60x60 | 617-960/1695-2690/3300-4200 | ±45° | 8/8/8 | 60/60/60 | 60/60/60 | -153dBc | 2x2 MIMO |

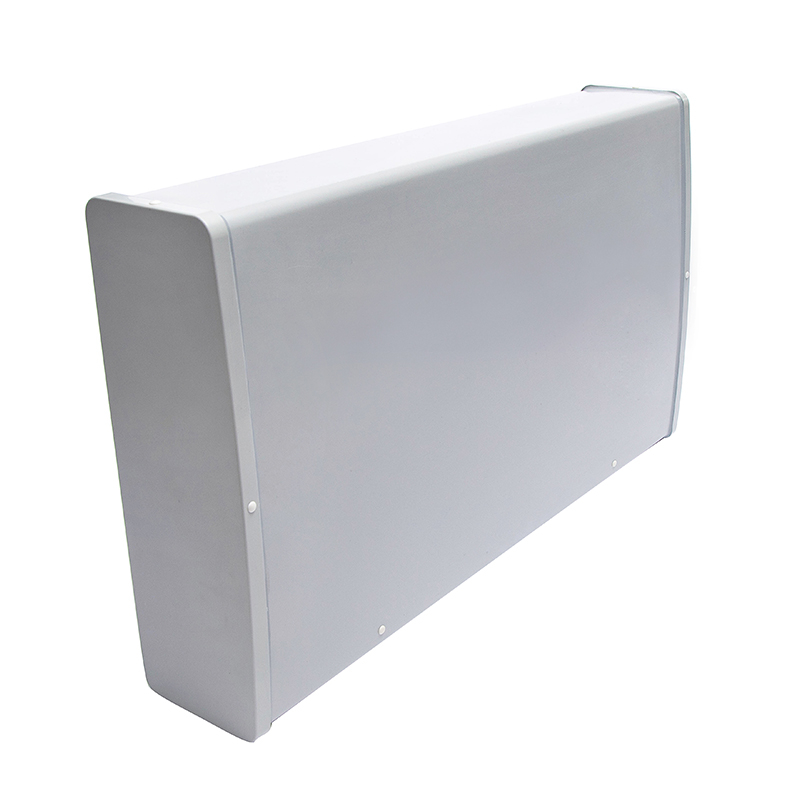

| 2 | 617-4200MHz 2x2MIMO 11dBi 30x60 | 617-960/1695-2690/3300-4200 | ±45° | 11/11/11 | 30/30/30 | 60/60/60 | -153dBc | 2x2 MIMO |

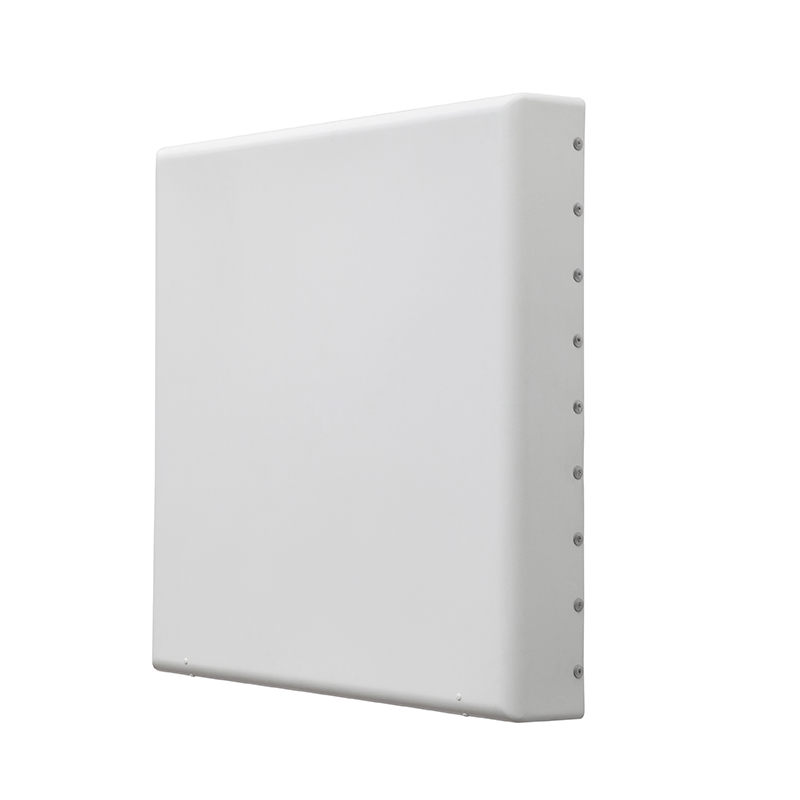

| 3 | 617-4200MHz 2x2MIMO 14dBi 30x30 | 617-960/1695-2690/3300-4200 | ±45° | 13/14/14 | 30/30/30 | 30/30/30 | -153dBc | 2x2 MIMO |

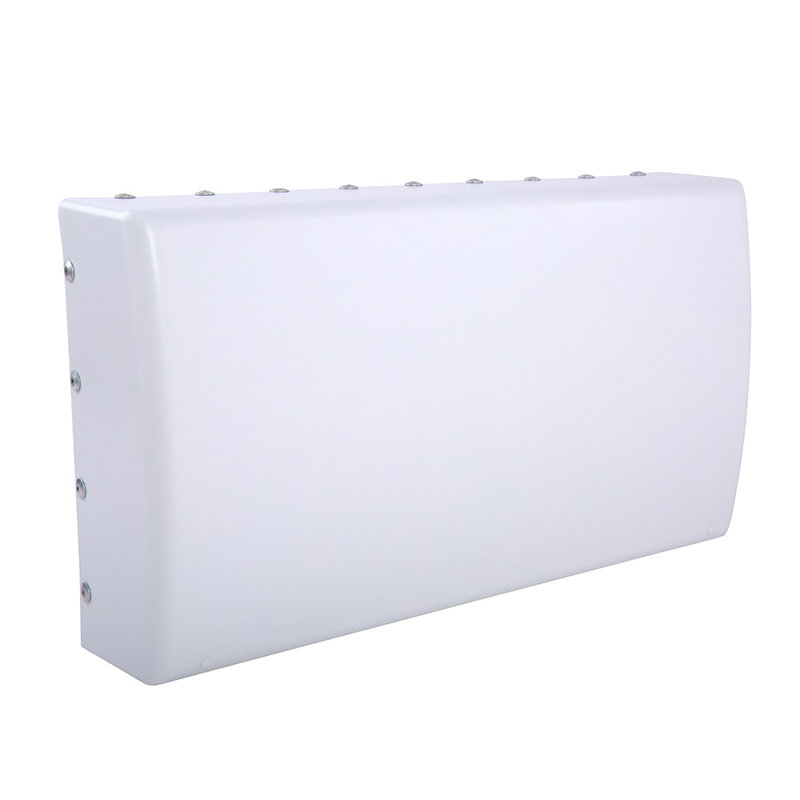

| 4 | 698-2700MHz | 698-960/1695-2690 | ±45° | 11/12 | 30/30 | 60/60 | -153dBc | 2x2 MIMO |

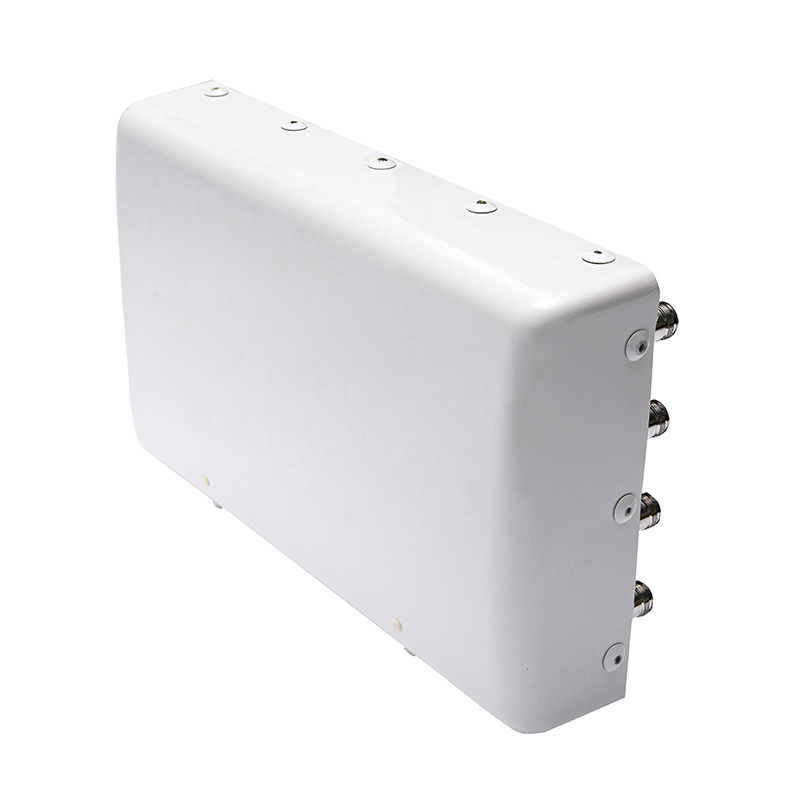

| 5 | 1695-4200MHz 4x4MIMO 11dBi 30x60 | 1695-2690/3300-4200 | ±45° | 11/12 | 30/30 | 60/60 | -153dBc | 4x4 MIMO |

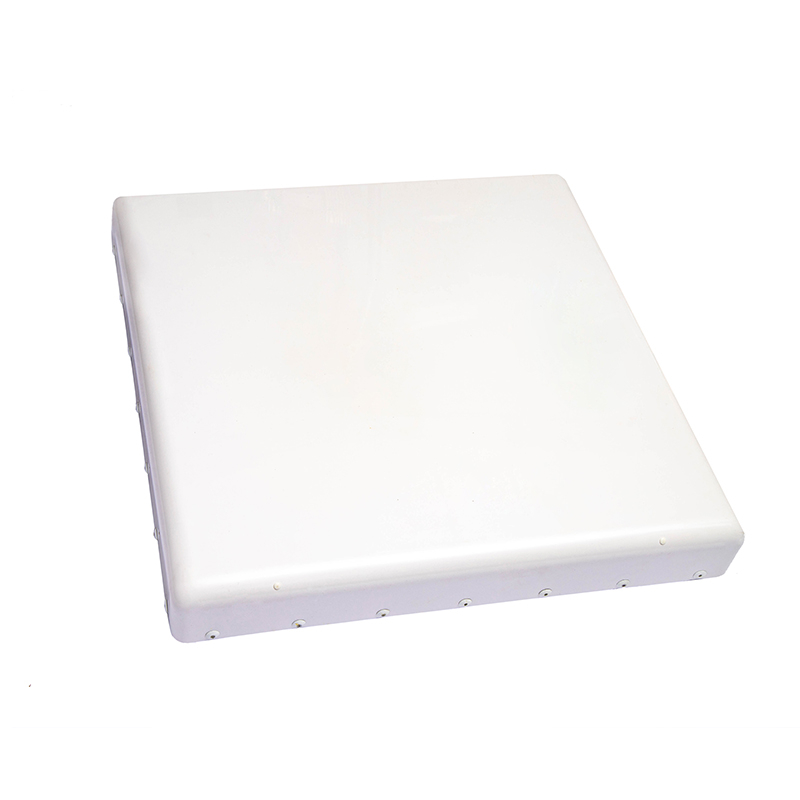

| 6 | 1710-5000MHz 4x4MIMO 17dBi 20x20 | 1695-2690/4800-5000 | ±45° | 17/18 | 20/20 | 20/20 | -153dBc | 4x4 MIMO |
